Smart terminal for bill recognition and verification

Smart terminal for bill recognition and verification

Using Rockchip RK3288 processor, equipped with industrial-grade binocular camera and face living recognition technology, it is a high-performance, high-reliability product.

Inquire Now


Smart terminal for bill recognition and verification

Product Introduction

Smart terminal for bill recognition and verification

Using Rockchip RK3288 processor, equipped with industrial-grade binocular camera and face living recognition technology, it is a high-performance, high-reliability product. Support 1:1 and 1:N face comparison and retrieval, support multiple optional functions such as IC contactless card/second-generation card, QR code/fingerprint, etc., which can be applied to gate channels, access control and attendance, visitor registration, Realize the safe and efficient access control of personnel.

Application scenarios:

Cinemas, playgrounds, public queuing smart terminals for bill recognition and verification

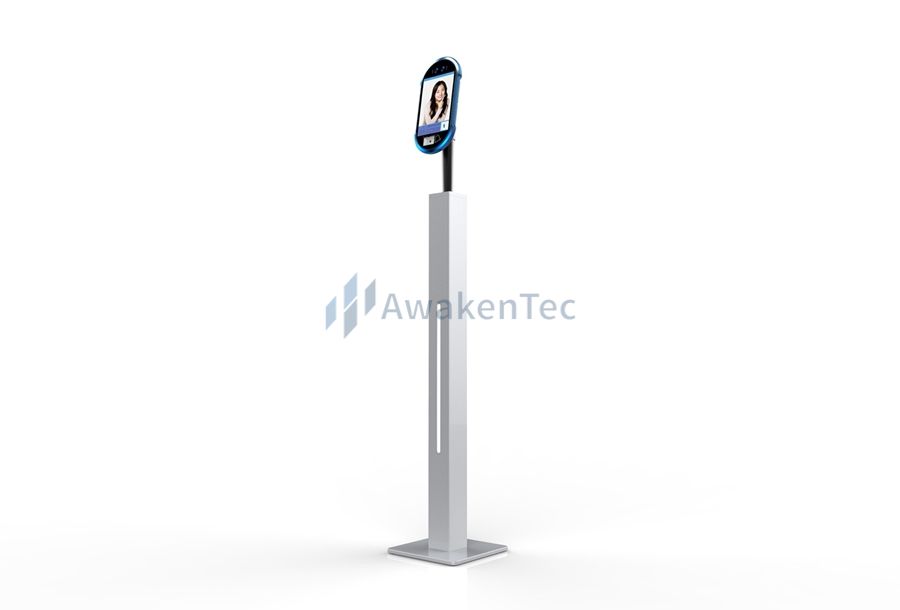

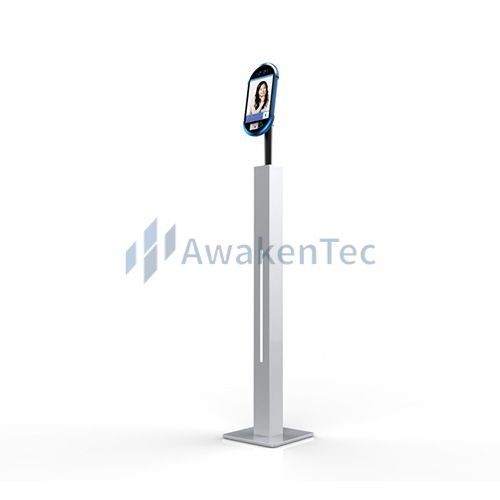

Can be used with aluminum alloy brackets, suitable for movie theaters, scenic spots, etc.

Guests can verify and cancel the bills purchased on the same day through the QR code on their mobile phone or paper.

Hold a movie ticket or amusement park ticket in hand, place it on the QR code scanning place of the smart terminal for bill identification verification, and scan it through the QR code scanning module to confirm whether the bill you purchased is really valid.

When you buy a movie ticket online, place the verification terminal at the entrance of the movie theater, the audience holds the bill, and scan the QR code on the bill toward the QR code scanning reader on the verification machine. You can enter the movie after passing the verification.

When visitors enter the open amusement park, place a verification terminal on each item to be played. When a guest wishes to play a single item game, the customer pays via mobile phone or tickets, and presents a valid QR code and verification code. Place it on the verification machine to verify the bill. After verification is successful, visitors can enter the game

When handling things in the government affairs hall, make an appointment online, come to the government affairs hall, show the appointment number, and perform verification on the verification machine. The verification machine immediately arranges the position of the queue according to the time you verify. When the queue reaches itself, the verification machine connects to the broadcast to call the number. Realize queuing call number management.

Smart terminal for bill recognition and verification, compatible with all Android software, is a good helper for movie theaters, playgrounds, and public queuing


● Adopt 8-inch IPS full-view LCD display

● Industrial-grade appearance, waterproof and dust-proof design, stable and reliable

● Support 3W face library. The recognition rate of 1:1 comparison is more than 99.7%, the recognition rate of 1:N comparison is more than 96.7%@0.1% false recognition rate, and the accuracy rate of live detection is 98.3%@1% false rejection rate. Face recognition pass speed is less than 1 second

● Adopt industrial grade binocular wide dynamic camera, night infrared, LED double fill light

● Adopt HiSilicon RK3288 quad-core processor with strong performance

● Support multiple peripheral expansions such as ID card reader, fingerprint reader, IC card reader, QR code reader, etc.

● Support system level, APP offline level, APP + background network level multiple API docking, complete documentation, support secondary development

Product parameter

Product numberProduct ImageDescribe
HT-S200Face recognition smart terminal★Face recognition smart terminal
Hardware ConfigurationThe main parametersA detailed description
Main control (built-in)CPU: RK3288, quad-core, main frequency: 1.8G
Memory: 2G
Storage: 8G (expandable to 64G)
Support 3G/4G
Support WIFI, Bluetooth
Support voice
Touch screen (built-in)Screen size: 8 inches
The best resolution: 800*1280 60HZ
Screen aspect ratio: 16:9
Contrast ratio: 500:1
Response time (milliseconds): 5
Viewing angle: 170°/160°(H/V)
Touch screen: capacitive, support multi-touch, I2C interface, drive-free
Second-generation ID card reader (built-in)Card reading type: ID card (second-generation/third-generation card), IC card; card reading distance: 0-5cm;
Reading speed: ID card reading speed <=1 second, card reading time <1.5 seconds
SensorInfrared or thermal imaging detection sensor, temperature error plus or minus 0.3°
Binocular wide dynamic cameraPixel: 2 million color camera 2 million black and white camera
Shooting distance: less than 1m
Frame rate: MGPG: 30fs YUY: 15fps
The highest resolution: 1280*960
Photosensitive element: COMS
Working voltage: USB 5V
Working current: 160-220mA
Lens color: 3.6MM 650 filter Black and white: 3.6MM 850 filter
LED fill light: 850nm 60°, infrared LED
Fingerprint deviceOptical
Resolution: 256*360
Ministry of Public Security Certified Fingerprint Apparatus
Interface: USB
QR codeWorking mode: lens sensor Communication interface: RS232/USB
Reading accuracy: 10mil Light source: White LED
Code system: 2D, PDF417, Data Matrix, QR Code
External expansion IO interface2*USB 2.0, 1*RJ11, 1 input and 1 output GPIO, 1*Lan, 1*DC
OtherPower supply: DC 12V adapter, output current 2A
Protection level: IP65
Working temperature: ﹣10℃~60℃
Storage temperature: -20℃~60℃
Product size: 314*130*225MM (length * width * height)
Weight: 2kg
Packing: carton + Poly Dragon

Software1. Face recognition: support the accurate recognition of faces in the system, and linkage access control to open the door;
2. Mask detection: Support mask detection and face recognition when wearing a mask;
3. Blacklist deployment control: support the definition of blacklist users in the system and alarm;
4. Personal ID verification: support non-system personnel, and compare the ID card with the face;
5. Recognition distance: Support face recognition distance can be adjusted, the adjustment range is 30cm-150cm;
6. Temperature measurement function: support temperature measurement distance less than 0.5 meters; temperature measurement accuracy is less than 0.5 ℃;
7. Wechat push: support incoming and outgoing information, real-time push to Wechat end;
8. Support languages: Chinese, English, Japanese;

Cinemas, playgrounds, public queuing bill verification terminals (results)
