Sonic UV spray disinfection temperature measurement channel door

Product Specification Chart

Product parameters

 Product name: Sonic UV spray disinfection temperature measurement channel

 Equipment model: Q-300

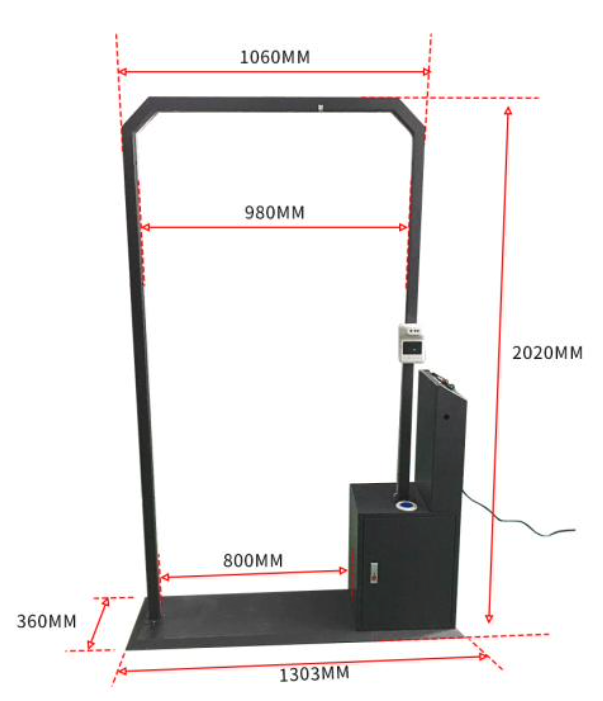

 Product size: 400x800x2100mm

 Voltage/Frequency: 220V-50HZ (different voltages need to be customized)

 Type of protection against electric shock: Type I

Rated power: 400W

 Net weight: 30kg Gross weight: 40kg Water tank capacity: 20L Disinfection water consumption: 6KG/hour (spray-on three sides)

 Disinfectant use: use purified water or tap water mixed with qualified medical disinfectant, hypochlorous acid, and other qualified disinfectants.

 Spraying method: Infrared induction system, when people are 2 meters away from the door, ultrasonic atomization will be automatically sprayed, and it will be closed after leaving.

 Spray time: The relay can adjust 1-20 seconds to spray, 5-15 seconds is the best.

 Ultraviolet disinfection: Ultra-large sterilization ultraviolet light-emitting surface makes it easier to use and sterilize. Imported double-core germicidal lamp beads, UVA high penetration

+UVC high sterilization rate, so that the best disinfection and sterilization effect, high sterilization efficiency, low energy consumption, high efficiency, long life

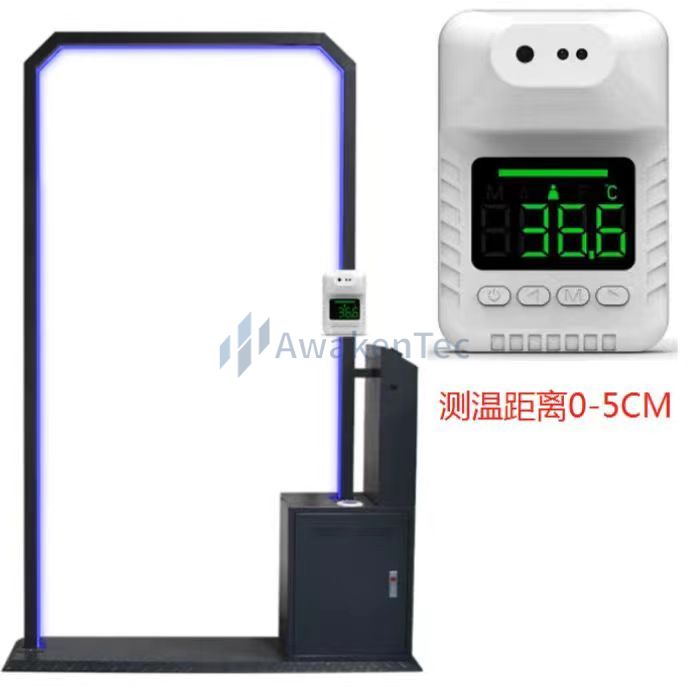

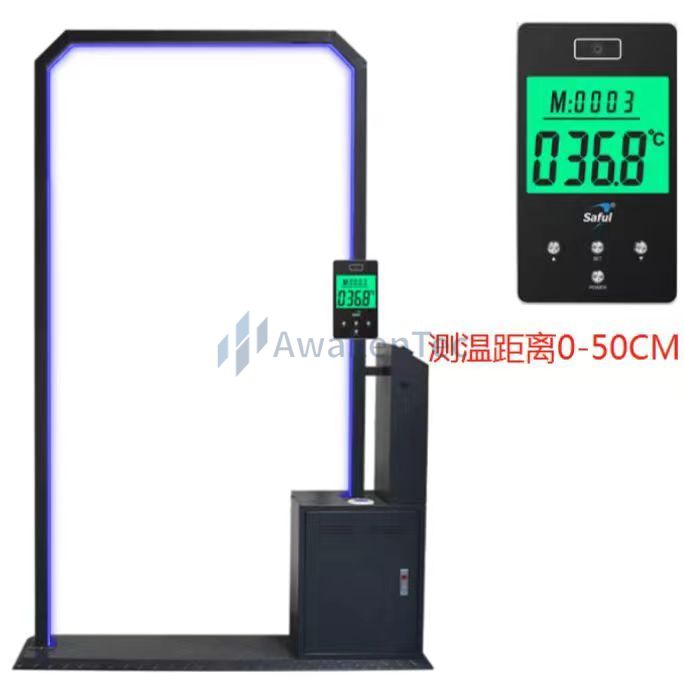

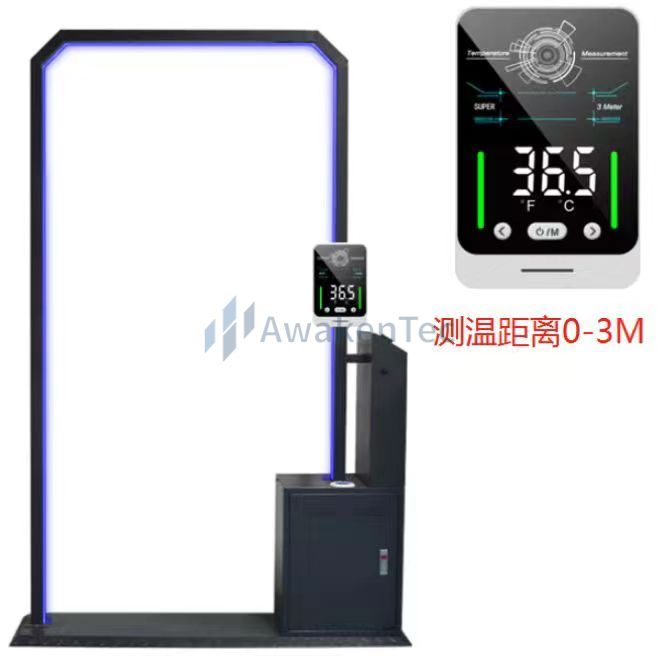

 Function configuration: ultraviolet disinfection; short distance (0-5CM)/middle distance (0-50CM)/long distance (0-200CM) infrared

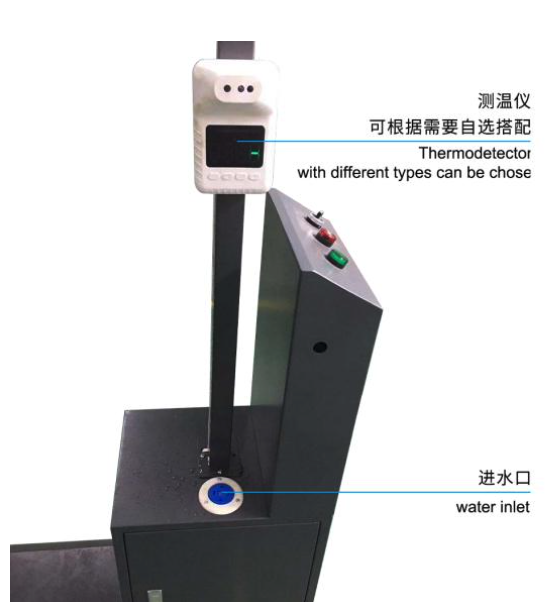

Optional thermometer; safe voltage power supply (DC power supply); non-slip pedals; ultra-fine atomization (3 nanometers atomized particles); waterproof fan; customized anti-corrosion special atomization plate; Led lighting.

 Appearance: High-quality 304 stainless steel + plastic spray treatment (material can be customized).

 Use places: hospitals, schools, stations, airports, enterprises and institutions, hotels, entertainment venues, etc.
